1.00mm(.039″)FFC/FPC Connector
Specification
Measurement | 1.00mm (.039") |
Circuits | 4~35 circuits |
Current Rating | 0.5A AC DC |
Voltage Rating | 30V AC DC |
Temperature rating: | -25℃~+85℃ |
Contact resistance | 30mΩ max. |
Insulation resistance | 500MΩ min. |
Withstanding voltage | 500V AC/min. |
Standards
Product Details
- 1055 Series 1.00mm(.039")ZIF Top Entry DIP FFC/FPC Connector
- 1055 Series 1.00mm(.039")ZIF Side Entry DIP FFC/FPC Connector
Product | 1055S |
Circuits | 4~35 circuits |
Material | Thermoplatic UL94V-0/Phosphor Bronze |
Material Options | - |
Color Options | - |

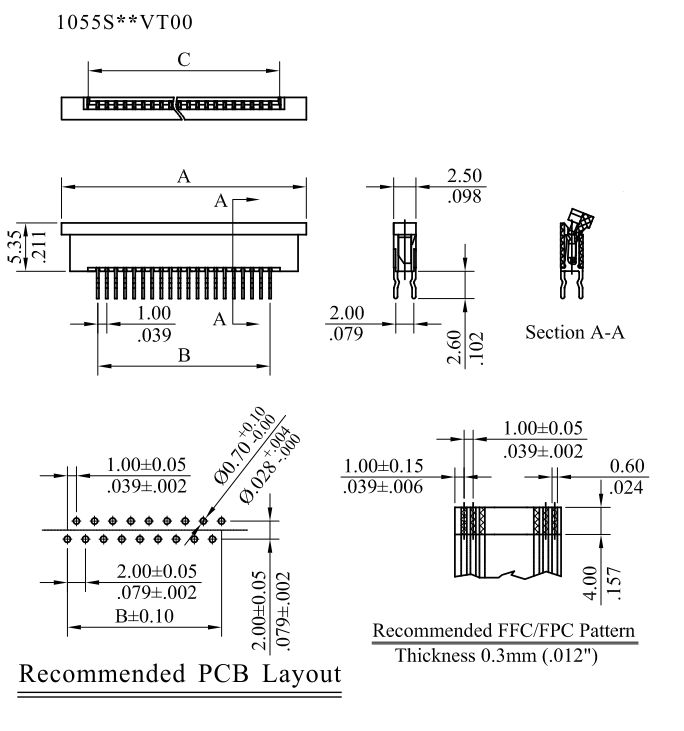

Formula | P/N 1055S**VT00 |
Options | - |
Other Informaton | - |
Product | 1055S |
Circuits | 4~35 circuits |
Material | Thermoplatic UL94V-0/Phosphor Bronze |
Material Options | - |
Color Options | - |
Formula | P/N 1055S**HT*0 |
Options | - |
Other Informaton | - |
