2.00mm (.079″) Wire to Board Connector
Specification
| Measurement | 2.00mm (.079") |
| Circuits | 2~16 circuits |
| Current Rating | 3A AC DC |
| Voltage Rating | 250V AC DC |
| Temperature rating: | -25℃~+105℃ |
| Contact resistance | 20mΩ max. |
| Insulation resistance | 1000MΩ min. |
| Withstanding voltage | 800V AC/min. |
Standards
Product Details

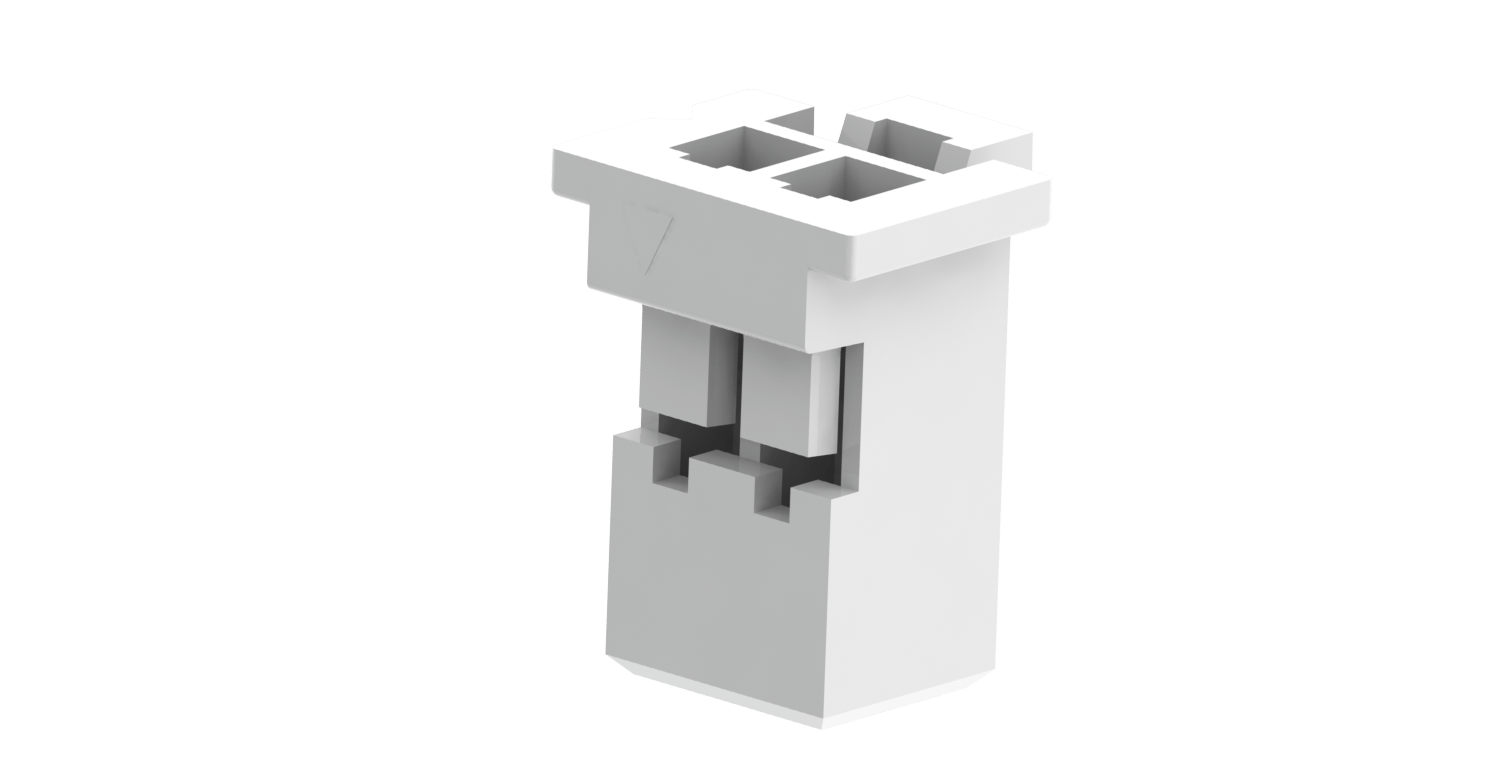

- 2029 Series 2.00mm (.079") Housing
- 2029T Crimping Terminal

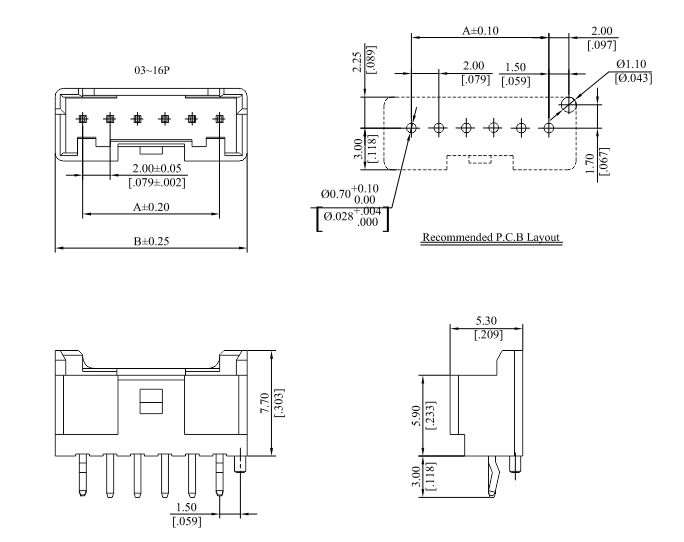

- 2029 Series 2.00mm(.079") Header

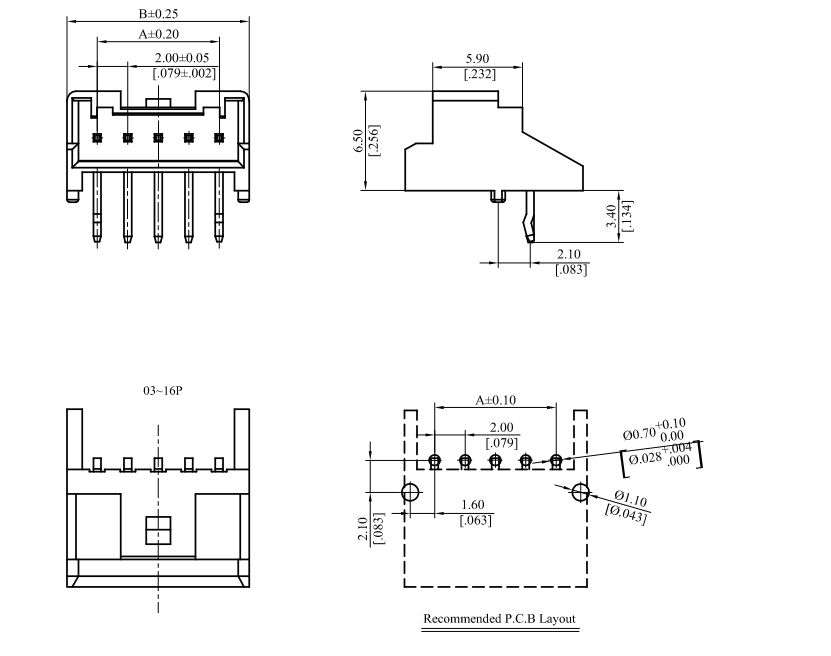

- 2029 Series 2.00mm(.079") Header
- 2029 Series 2.00mm(.079") Header (SMT)
- 2029 Series 2.00mm(.079") Header (SMT)
| Product | 2029S |
| Circuits | 2~16 circuits |
| Material | Nylon 6/6 UL94V-0 |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2029S**0000 |
| Options | - |
| Other Informaton | Mates with 2029 terminal |
| Product | 2029T |
| Circuits | - |
| Material | Phosphor Bronze |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2029TPB0000 |
| Options | - |
| Other Informaton | Mates with 2029 housing |
| Product | 2029P |
| Circuits | 2~8 circuits |
| Material | Nylon 6/6 UL94V-0/Copper Alloy |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2029P**V000 |
| Options | - |
| Other Informaton | Mates with 2029 housing |
| Product | 2029P |
| Circuits | 2~8 circuits |
| Material | Nylon 6/6 UL94V-0/Copper Alloy |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2029P**H000 |
| Options | - |
| Other Informaton | Mates with 2029 housing |
| Product | 2029P |
| Circuits | 2~8 circuits |
| Material | High Temperature Thermoplastic UL94V-0/Copper Alloy |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2029P**MV00 |
| Options | - |
| Other Informaton | Mates with 2029 housing |
| Product | 2029P |
| Circuits | 2~8 circuits |
| Material | High Temperature Thermoplastic UL94V-0/Copper Alloy |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2029P**MH00 |
| Options | - |
| Other Informaton | Mates with 2029 housing |
