2.00mm (.079″) Wire to Board Connector
Specification
| Measurement | 2.00mm (.079") |
| Circuits | 4~44 circuits |
| Current Rating | 2A AC DC |
| Voltage Rating | 250V AC DC |
| Temperature rating: | -25℃~+85℃ |
| Contact resistance | 20mΩ max. |
| Insulation resistance | 1000MΩ min. |
| Withstanding voltage | 500V AC/min. |
Standards
Product Details

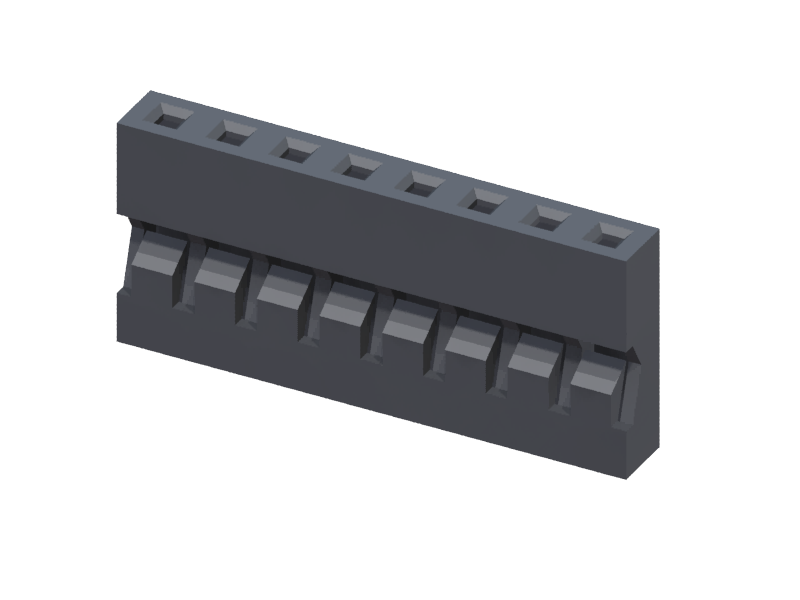

- 2065 Series 2.00mm (.079") Housing
- 2066 Series 2.00mm (.079") Dual Row Housing
- 2065T Crimping Terminal

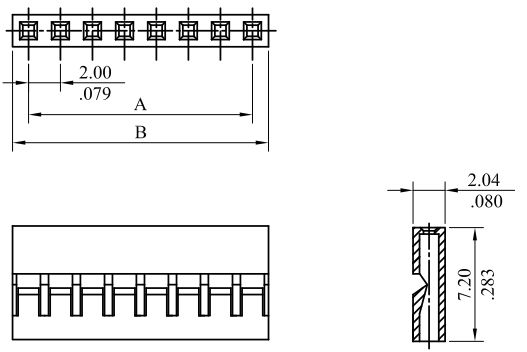

| Product | 2065S |
| Circuits | 2~30 circuits |
| Material | Thermoplastic UL94V-0 |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2065S**0000 |
| Options | - |
| Other Informaton | Mates with 2018P |
| Product | 2066S |
| Circuits | 4~44 circuits |
| Material | Thermoplastic UL94V-0 |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2066S**0000 |
| Options | - |
| Other Informaton | Mates with 2028P |
| Product | 2065T |
| Circuits | - |
| Material | Phosphor Bronze |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2065TPBU00* |
| Options | - |
| Other Informaton | Mates with 2065&2066 HOUSING AWG 26~30 Gold Flash 10K Pcs/Reel |
