2.54mm(.100″)IDC Connector
Specification
Measurement | 2.54mm (.100") |
Circuits | 6~64 circuits |
Current Rating | 1A AC DC |
Voltage Rating | 250V AC DC |
Temperature rating: | -40℃~+105℃ |
Contact resistance | 20mΩ max. |
Insulation resistance | 1000MΩ min. |
Withstanding voltage | 1000V AC/min. |
Standards
Product Details
- 2540 Series 2.54mm(.100")IDC Socket For 1.27mm(.050")Center Flat Cable
- Strain Relief
Product | 2540S |
Circuits | 6~64 circuits |
Material | Thermoplastic UL94V-0/Copper Alloy |
Material Options | - |
Color Options | - |
Formula | P/N 2540S****** |
Options | - |
Other Informaton | Mates with 2545P and 3675P |
Product | 2540S |
Circuits | 6~64 circuits |
Material | Thermoplastic UL94V-0 |
Material Options | - |
Color Options | - |

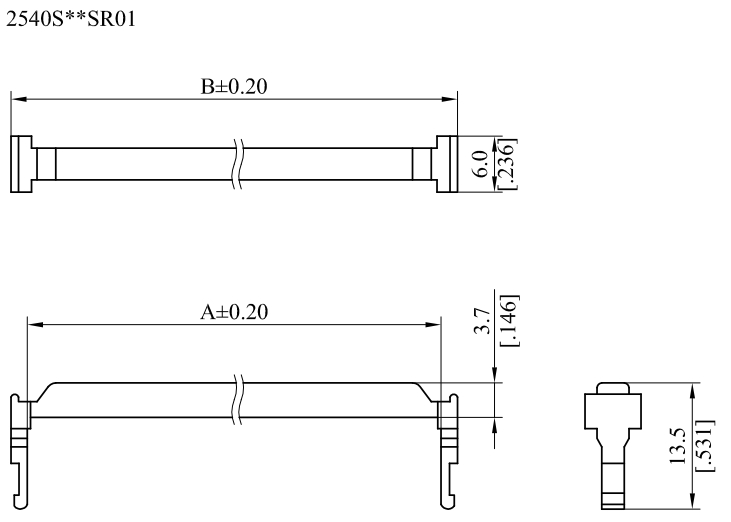

Formula | P/N 2540S**SR** |
Options | - |
Other Informaton | - |
