3.96mm (.156″) Wire to Board Connector
Specification
| Measurement | 3.96mm (.156") |
| Circuits | 2~12 circuits |
| Current Rating | 7A AC DC |
| Voltage Rating | 250V AC DC |
| Temperature rating: | -25℃~+85℃ |
| Contact resistance | 10mΩ max. |
| Insulation resistance | 1000MΩ min. |
| Withstanding voltage | 1500V AC/min. |
Standards
Product Details

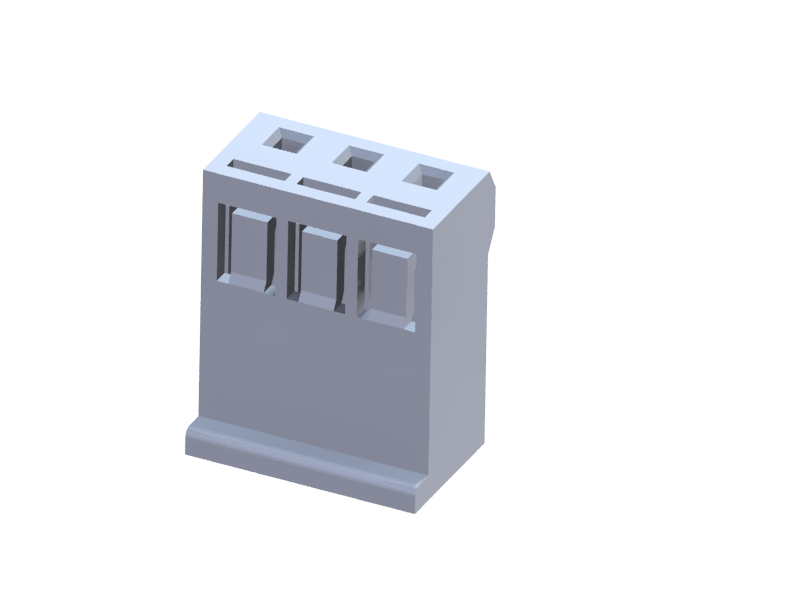

- 3976 Series 3.96mm (.156") Housing
- 3976T Series Crimping Terminal
| Product | 3976S |
| Circuits | 2~12 circuits |
| Material | Nylon 6/6 UL94V-0 |
| Material Options | - |
| Color Options | - |
| Formula | P/N 3976S**00GT |
| Options | - |
| Other Informaton | Mates with 3976 terminal |
| Product | 3976T |
| Circuits | - |
| Material | Brass |
| Material Options | - |
| Color Options | - |
| Formula | P/N 3976TCB00V1 |
| Options | - |
| Other Informaton | Mates with 3976S AWG 18~24 Tin Plated 3.5K Pcs/Reel |
