4.00mm(.157″) Wire to Board Connector
Specification
| Measurement | 4.00mm (.157") |
| Circuits | 1~3 circuits |
| Current Rating | 9A AC DC |
| Voltage Rating | 300V AC DC |
| Temperature rating: | -40℃~+105℃ |
| Contact resistance | 10mΩ max. |
| Insulation resistance | 1000MΩ min. |
| Withstanding voltage | 1600V AC/min. |
Standards
Product Details

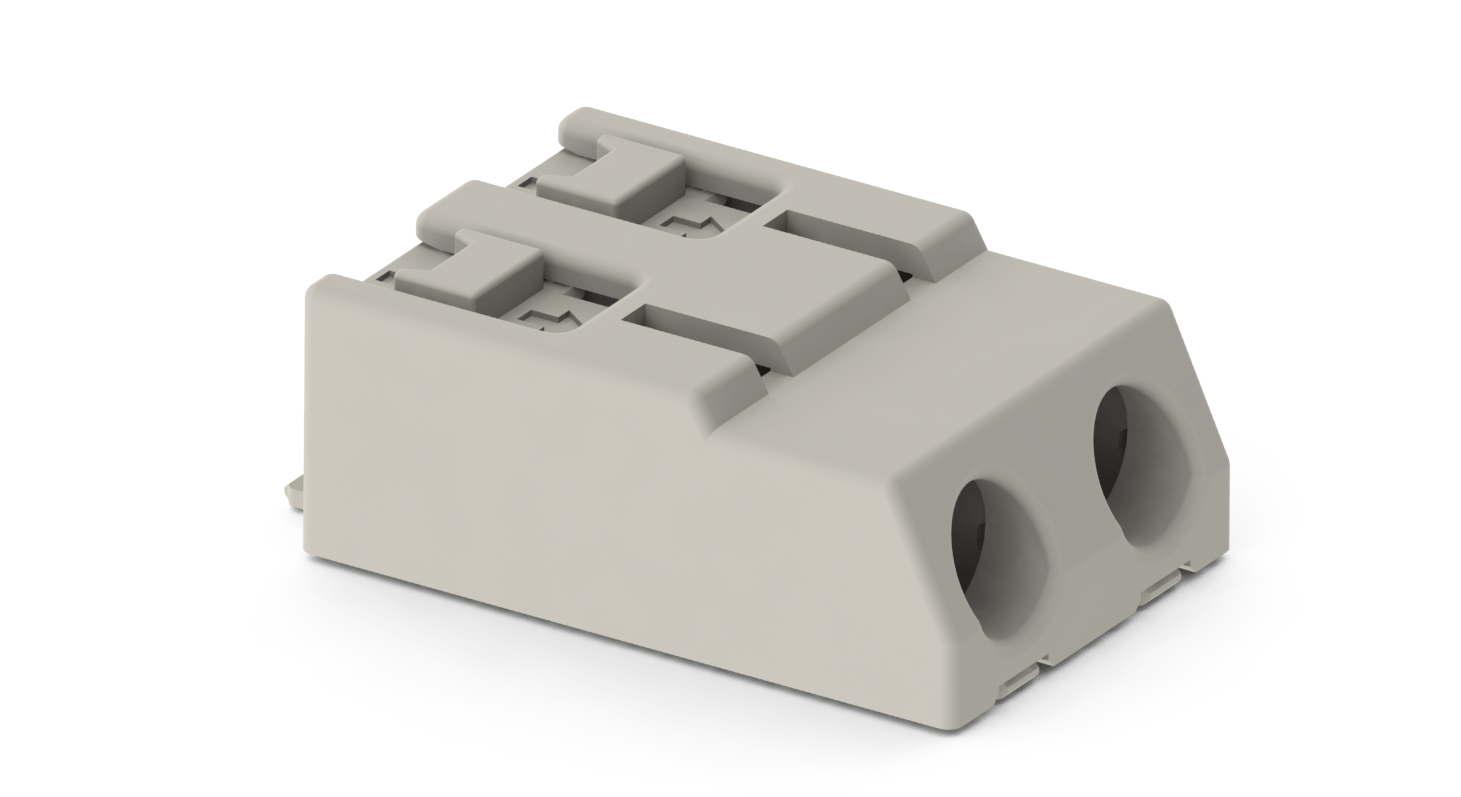

- 4035 Series 4.00mm (.157") Wafer
| Product | 4035P |
| Circuits | 1~3 circuits |
| Material | High Temperature Thermoplastic UL94V-0/Copper Alloy |
| Material Options | - |
| Color Options | - |
| Formula | P/N 4035P**MT0* |
| Options | - |
| Other Informaton | - |
