7.50-5.00mm (.295″-.197″) Wire to Board Connector
Specification
| Measurement | 7.50-5.00mm (.295"-.197") |
| Circuits | 2~16 circuits |
| Current Rating | 7A AC DC |
| Voltage Rating | 250V AC DC |
| Temperature rating: | -25℃~+105℃ |
| Contact resistance | 20mΩ max. |
| Insulation resistance | 1000MΩ min. |
| Withstanding voltage | 1500V AC/min. |
Standards
Product Details
- 7500 Series 7.50-5.00mm (.295"-.197") Housing
- 7501 Series 7.50-5.00mm (.295"-.197") Straight Header
- 7502 Series 7.50-5.00mm (.295"-.197") Right Angle Header
| Product | 7500S |
| Circuits | 2~16 circuits |
| Material | Nylon6/6 UL94V-0 |
| Material Options | - |
| Color Options | - |
| Formula | P/N 7500S**0013 |
| Options | - |
| Other Informaton | Mates with 3979 terminal |
| Product | 7501P |
| Circuits | 2~15 circuits |
| Material | Nylon6/6 UL94V-0/Brass |
| Material Options | - |
| Color Options | - |
| Formula | P/N 7501P**0*13 |
| Options | - |
| Other Informaton | Mates with 7500 housing |

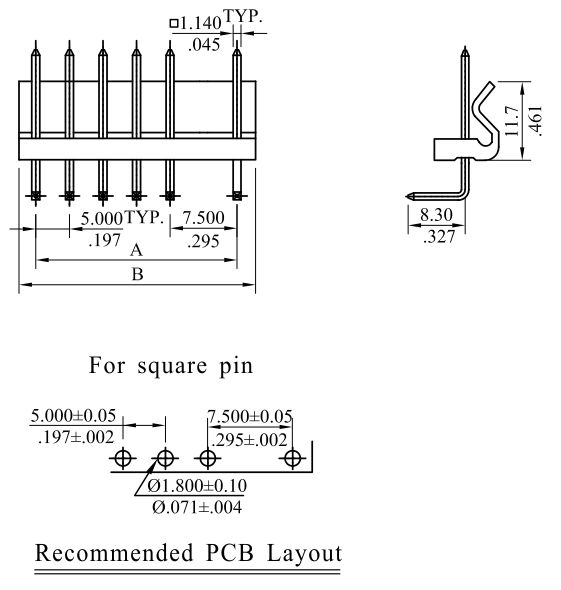

| Product | 7502P |
| Circuits | 2~15 circuits |
| Material | Nylon6/6 UL94V-0/Brass |
| Material Options | - |
| Color Options | - |
| Formula | P/N 7502P**0013 |
| Options | - |
| Other Informaton | Mates with 7500 housing |
