Networking RJ Series (PCB Mount)
Specification
Measurement | 1.27mm(.050")*2.54mm(.100") |
Circuits | - |
Current Rating | 1.5A AC DC |
Voltage Rating | 125V AC DC |
Temperature rating: | -40℃~+85℃ |
Contact resistance | 20mΩ max. |
Insulation resistance | 1000MΩ min. |
Withstanding voltage | 1000V AC/min. |
Standards
Product Details

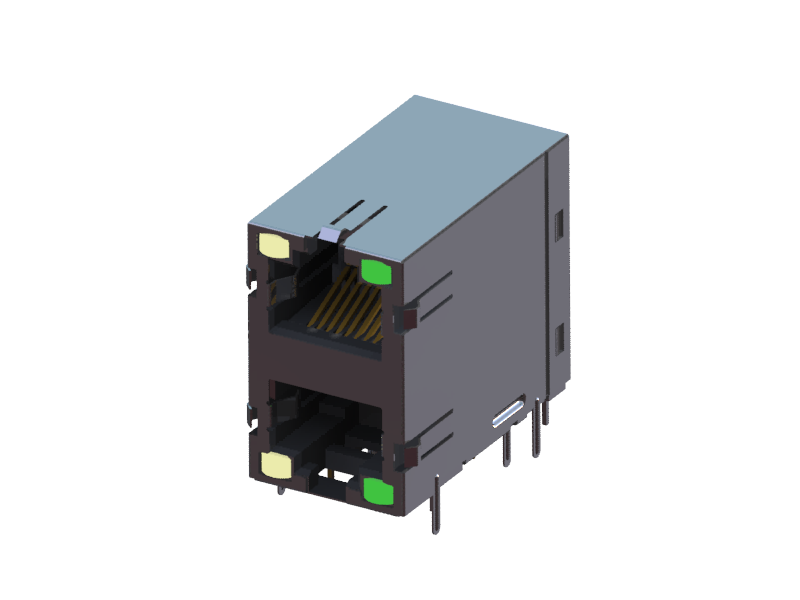

- RJ45 Series
Product | 76A0 |
Circuits | - |
Material | High Performance Thermoplastic UL94V-0/High Performance Copper Alloy |
Material Options | - |
Color Options | - |
Formula | P/N 76A0-5400*H |
Options | - |
Other Informaton | - |
