2.54mm (.100″) Board to Board Connector
Specification
| Measurement | 2.54mm (.100") |
| Circuits | 3~21circuits |
| Current Rating | 3A AC DC |
| Voltage Rating | 250V AC DC |
| Temperature rating: | -40℃~+105℃ |
| Contact resistance | 20mΩ max. |
| Insulation resistance | 1000MΩ min. |
| Withstanding voltage | 500V AC/min. |
Standards
Product Details

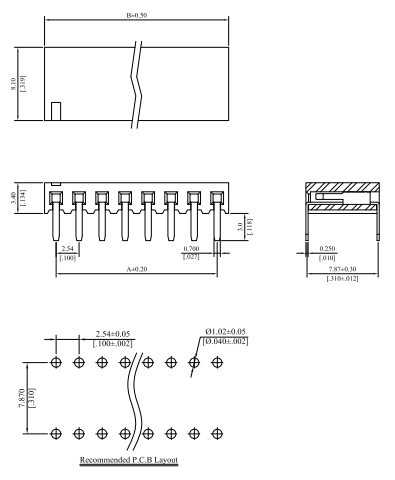

- 2554 Series 2.54mm (.100") Single Row Side Entry Socket
| Product | 2554S |
| Circuits | 3~21 circuits |
| Material | Thermoplastic UL94V-0/Phosphor Bronze |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2554S***000 |
| Options | - |
| Other Informaton | Mates with 2.54mm(.100") Pin Header |
