2.54mm (.100″) Board to Board Connector
Specification
Measurement | 2.54mm (.100") |
Circuits | 1~40circuits |
Current Rating | 3A AC DC |
Voltage Rating | 250V AC DC |
Temperature rating: | -40℃~+105℃ |
Contact resistance | 20mΩ max. |
Insulation resistance | 1000MΩ min. |
Withstanding voltage | 500V AC/min. |
Standards
Product Details
- 3594 Series 2.54mm (.100") Single Row PCB Socket
Product | 3594S |
Circuits | 1~40 circuits |
Material | Thermoplastic UL94V-0/Brass |
Material Options | - |
Color Options | - |
Formula | P/N 3594S**V*00 |
Options | - |
Other Informaton | Mates with 2556P,2557P,2566P,2567P |
Product | 3594S |
Circuits | 1~40 circuits |
Material | Thermoplastic UL94V-0/Brass |
Material Options | - |
Color Options | - |

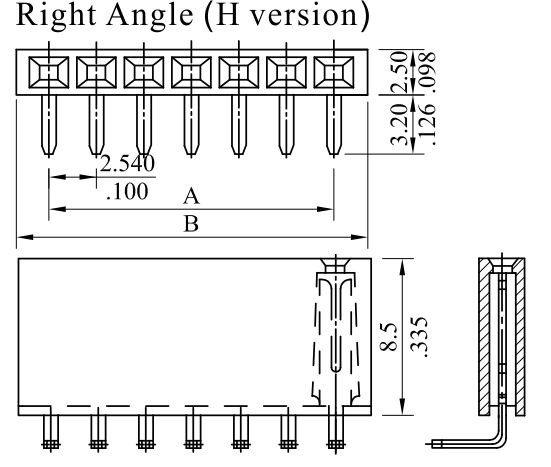

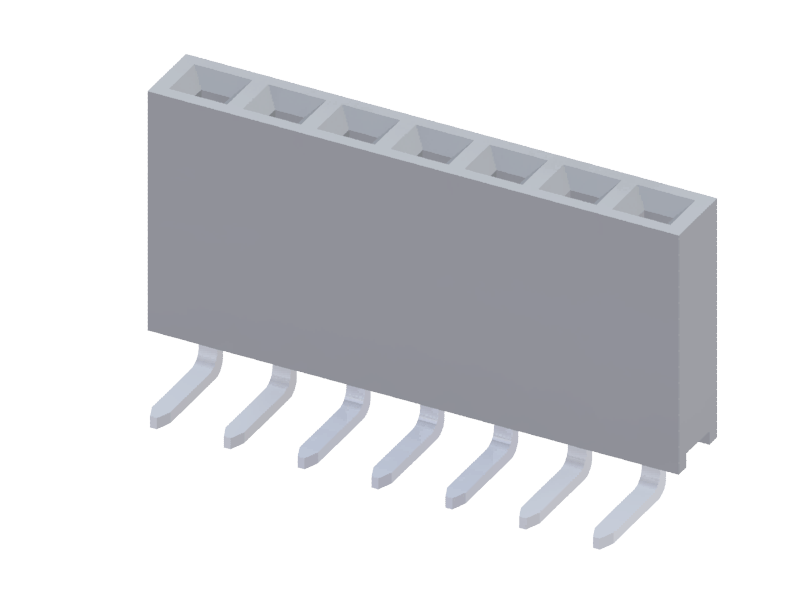

Formula | P/N 3594S**H*00 |
Options | - |
Other Informaton | Mates with 2556P,2557P,2566P,2567P |
